DYNAMIC SIGNAL ANALYZER

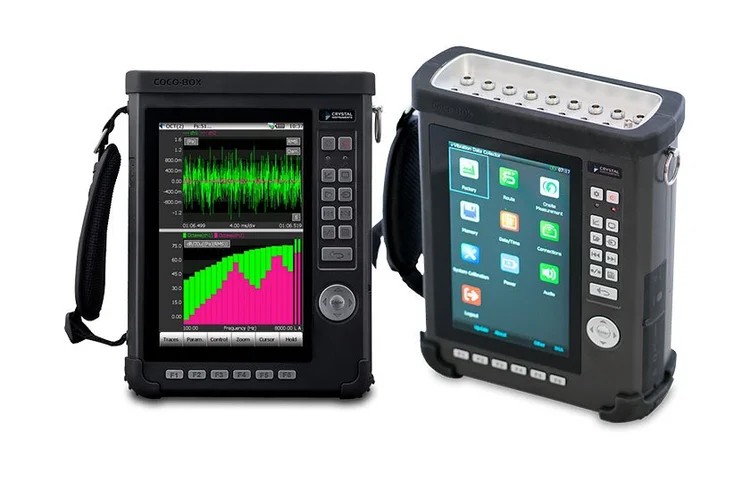

Model Name: Coco-80X
Company Name: Crystal Instruments
About:
The CoCo-80X is a new generation of handheld data recorder, dynamic signal analyzer and vibration data collector from Crystal Instruments. Building on the success of the original CoCo-80, the new CoCo-80X boasts improved speed, a bigger screen, and more connection options. A significantly more powerful processor frees DSP resources for faster, more reliable, and more complex processing in real-time.
Salient Features:
- Inputs: 2, 4, 6, 8 channels
- Up to 8 BNC connectors, built-in IEPE current source, single-ended or differential, AC, DC coupling, 150 dBFS dynamic range, dual 24-bit A/D converters, input range ±20 Volts
- Output: 1 LEMO connector, 100 dB dynamic range, 24-bit A/D converter
- Tacho: 1 LEMO connector: Tachometer Type 1 and 2 share one LEMO connector and can be selected by the software Interface
- Detectors: 100 Base-T Ethernet, Wi-Fi, GPS, Mini-USB 2.0, SD Card, Audio input and output, CAN-Bus
- Maximum Sampling Rate: 102.4 kHz simultaneously for all inputs
- Typical Real-time Analysis Functions: Math (+, -, *, /), integration, differentiation, FFT, averaging, windowing, auto power spectra, cross spectra, FRF, coherence, real-time filters, RMS, octave, order tracking, swept sine, limiting, alarm/abort and more.
- Vibration Data Collection Functions: RMS, true-RMS, overall-RMS, waveforms, spectrum, demodulated spectrum, trending and alarm, 2 plane balancing. Measure acceleration, velocity, displacement and tachometer.
Applications:
- Academic research involving vibration analysis, structural dynamics, modal testing, and experimental validation of mechanical and electromechanical systems.
